Description

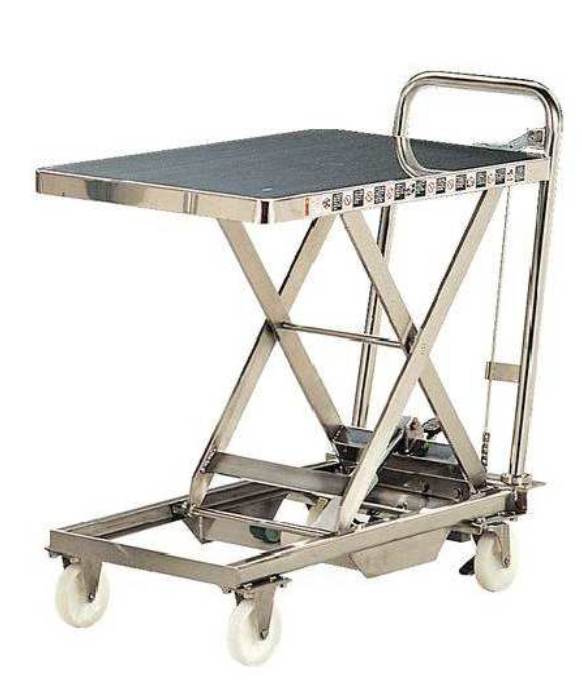

Manual platform ISNP100, Pharma series
Manual platform ISNP100, Pharma series
The lifting platform is completely in stainless steel AISI 304.
Electro-polished finish.
With n ° 4 Nylon wheels, n ° 2 with parking brake.
Lifting operation by pedal with stainless steel cylinder.
Exhaust valve with constant descent speed, controlled by lever on gripping handle.
Certification and CE mark.
24-month warranty.
Type 1: 100 Kg capacity
Floor 450 × 700 mm
Minimum height 213 mm
Maximum height 750 mm
Weight 33 Kg
Type 2: 200 Kg capacity
Floor 500 × 900 mm
Minimum height 288 mm
Maximum height 920 mm
Weight 78 Kg
Type 3: 400 Kg capacity
Platform 900 × 500 mm
Minimum height 440 mm
Maximum height 1020 mm
Weight 112 Kg
Custom platforms
We manufacture special pantograph platforms in stainless steel to meet the specific needs of our customers, with electric, hydraulic and pneumatic lifting.
Following some realization.

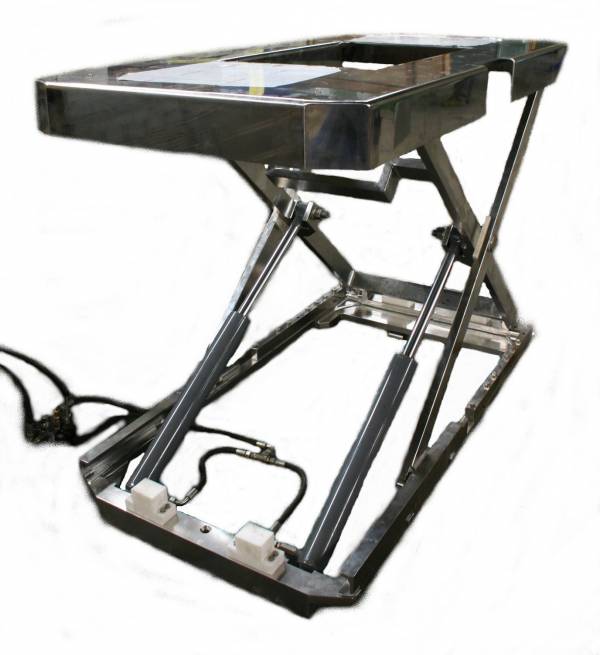

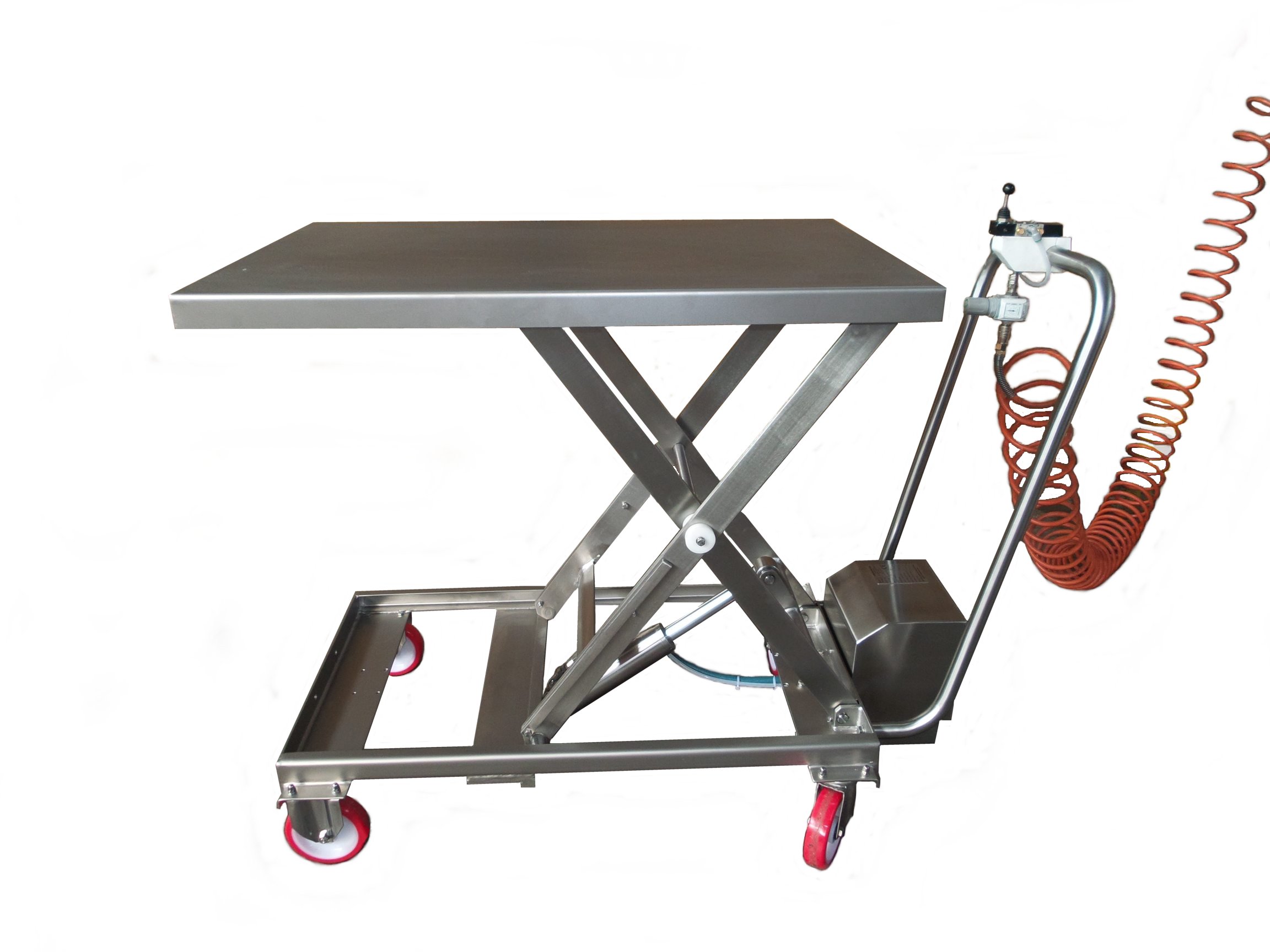

Pneumatic lifting platform
Lifting platform
